densha shelter

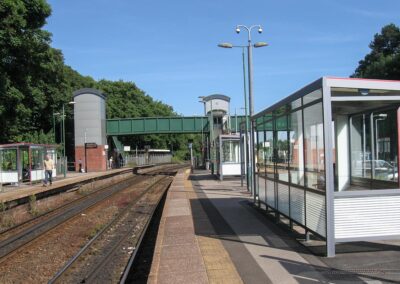

A modern and attractive railway waiting structure, this shelter is designed for the rail environment. The design has been developed to support a wide canopy with a cantilever configuration. The totem style structures provide surfaces for branding and information provision. These can also be used for help points and illumination.

Specification

• Constructed with stainless steel and anodised or polyester powder coated aluminium extrusions.
• Modular in design and available with a range of sizes to suit individual location constraints.
• Toughened and laminated glazed canopy with opaque finish to provide light transmittance but mask dirt build-up. Other glazing options of polycarbonate and solid panels available.
• Robust vertical glazing clamped on all 4 sides of each panel. Can be glazed with toughened laminate or toughened safety glass.  Other options include polycarbonate, solid or perforated panels.
• FSC hardwood DDA compliant seating with stainless steel and timber handles. A more comfortable and sustainable seat especially during winter months.
• High efficiency LED light panels provide good footprint lighting uniformity.
• Concealed gutters with gutter brush system to reduce maintenance and all discharge to low level through totem connections.
• Glazed totems provide space for marketing/ branding and information. These can be illuminated.
• Adequate provision for future and existing technologies and associated electronics available within the structure, such as cameras, CCTV, phone charging, WIFI hotspots, ticket machines, passenger information screens and kiosks.
• Can accommodate a green living roof.
